220v 24v 2.5a power supply with UL/CUL GS CE SAA FCC ROHS level VI

FOB Reference Price:Get Latest Price
$2.59 - $7.99 / Pieces | 300 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
TQ-240yz
Output Power:
18w-72w
Output Type:
Single
Output Voltage:
24v
Output Frequency:
47Hz~63Hz
Output Current:
750mA-3000mA
Input Voltage:
86v - 264V
220v 24v power supply colour:
White/black or other
Certificates approved:
TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
sample:
free sample
Efficiency:
level VI
DC/ AC cable:
as per your requirement
Input Rated Voltage:
86Vac~264Vac
Input Frequency Range:
47Hz~63Hz
warranty:
3 years
Faster delivery:
7-12 working days
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each 220v 24v power supply will be packed with PE bag or white box,
one carton have 30 pcs ,the gross weight is 15KG/CTN.
The carton box size is 39*31*29cm
Port
ShenZhen/HK
Video Description

220v 24v power supply

SPEC as following.
        Model No. TQ-240yz
DC Output 24V /  18w to 72wOperating Temperature 0°C - +55°C
Efficiencylevel VIStorage Temperature  -20°C - +85°C
Warranty3 yearsSafety Standard EN60950 EN60601  ESD (EN61000 3-3)
Certificates approvedTUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick CAS (60950 ITE/TE,EN60601 Medical)  FCC Part 15 subpart B Class 2
Input Rated Voltage 86Vac~264VacAN/NZS CISPR 22:2006
Input Frequency Range47Hz~63HzTurn On Delay Time less than 3S  (AC:110V and full load)
Safety protection output voltage protection Input Currentless than 0.5A
output current protection Input Inrush Currentless than 50A
short current protection Leakage Currentless than 5mA
Ripple and Noiseless than 60Mv at full road with 20MHz bandwidthDielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Adapter Size103*45*42mm (L/W/H)Standby powerless than 0.3w

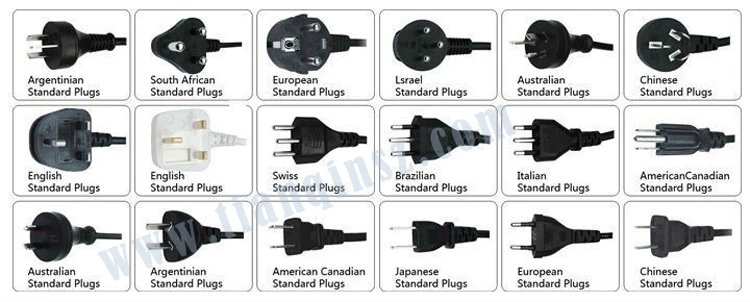

About the AC cable

Related Products







have EU/UK/AU models ,output 1W to 15W max ,like 5v 0.5a ,5v 1a,,5v 2.4a,5v 3a,6v 0.5a



have EU/UK/AU models too,  output 3W - 18W max ,like 12v 0.5a,12v 1a ,12v 1.5a ,5v 3a



have EU/UK/AU models too,  output 20W - 42W max,like 12v 2a ,12v 2.5a,17v 1.5a,5v 4a.

 have 2pin and 3pin socket , output 18W - 60W,like 12v 3a,12v 5a,24v 2.5a,24v 1.7a

USB  charger,output 5W max ,like 5v 0.5a ,0.6a,5v 1a ,6v 0.5a/0.6ahave EU/US models.  output 1W - 15W max ,like 12v 0.5a,12v 1a ,have EU/UK/AU models too,  output 20W - 42W max,like 12v 3.5a
Our certificate



Company Information



FAQ

Q: Shipment solution

A: we have 25 days shipment service for ocean shipment with door to door,you can get the goods      after 25 days after shipment ,the cost is less than half of express .

    you can also use the express shipment ,if the lead time is short .



Q: After-Sale Service:

A:  All power adapters have 3 years warranty,  if there was any default units ,take some

     pictures, we will replace the related quantity.



Q: OEM/ODEM available:

A: 1.  print logo on the power adapter or package box.

     2. Customized power adapter housing.

     3. Any your idea on the power adapter we can help you to design and put it into production.



Q: High quality, reasonable & competitive price, Faster delivery:

A: Sample order in stock, will be sent out in 2-3 days after confirmation, and 10-15 working days        for bulk production.







Q: How to choose suitable power adapter ?

A:  1. Please kindly tell us what's the power adapter will be use for?

     the EN60601 is for medical equipments, EN60950 is for consumer electronics' devices, home         appliance is EN61558 standard .



      2. If your product working current is 1A, we suggest you to use 12v 1.5A model, so the       adapter's temperature is low ,and have a long working life, usually it's double times.
